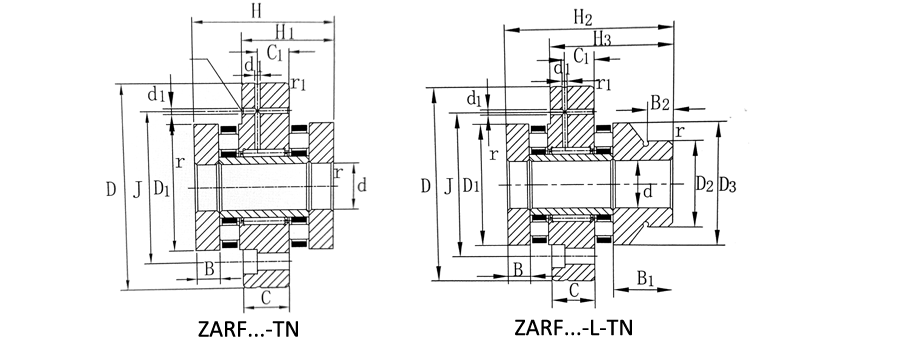

Ball Screw Support Bearing - ZARF	ZARN	ZKLF	ZARN

Dimension(mm)																Designation	Mass (kg)	Designation	Mass (kg)	Load Rating(kN)				Limiting Speed(rmp)
d	D	H	H 1	H 2	H 3	C	D 1	D 2	D 3	B	B 1	B c	rs	r	d 1					Radial		Axial		Limiting Speed(rmp)
d	D	H	H 1	H 2	H 3	C	D 1	D 2	D 3	B	B 1	B c	rs	r	d 1					Cr	Cor	Cr	Cor	Oil	Grease
15	60	40	26	53	39	14	35	24	34	7.5	20.5	11	0.3	0.6	3.2	ZARF1560-TN	0.42	ZARF1560-L-TN	0.45	13	17.5	24.9	53	8500	2200
17	62	43	27.5	57	41.5	14	38	28	38	9	23	11	0.3	0.6	3.2	ZARF1762-TN	0.49	ZARF1762-L-TN	0.52	14	19.9	26	57	7800	2100
20	68	46	29	60	43	14	42	30	40	10	24	11	0.3	0.6	3.2	ZARF2068-TN	0.56	ZARF2068-L-TN	0.61	14.9	22.4	33.5	76	7000	2000
20	80	60	38	75	53	18	52	40	50	12.5	27.5	11	0.3	0.6	3.2	ZARF2080-TN	1.10	ZARF2080-L-TN	1.22	22.6	36	64	141	6000	1500
25	75	50	33	65	48	18	47	36	45	10	25	11	0.3	0.6	3.2	ZARF2575-TN	0.78	ZARF2575-L-TN	0.84	22.6	36	33.5	86	6000	1900
25	90	60	38	75	53	18	62	48	60	12.5	27.5	11	0.3	0.6	3.2	ZARF2590-TN	0.16	ZARF2590-L-TN	1.75	24.3	41.5	80	199	4900	1400
30	80	50	33	65	48	18	52	40	50	10	25	11	0.3	0.6	3.2	ZARF3080-TN	0.85	ZARF3080-L-TN	0.90	24.3	41.5	39	101	5500	1800
30	105	66	41	82	57	18	68	52	66	14	30	12	0.3	0.6	3.2	ZARF30105-TN	1.95	ZARF30105-L-TN	2.15	26	47	107	265	4400	1300
35	90	54	35	70	51	18	60	45	58	11	27	12	0.3	0.6	3.2	ZARF3590-TN	1.12	ZARF3590-L-TN	1.25	26	47	56	148	4800	1700
35	110	66	41	82	57	18	73	60	73	14	30	12	0.3	0.6	3.2	ZARF35110-TN	1.60	ZARF35110-L-TN	1.85	27.5	53	105	265	4000	1250
40	100	54	35	70	51	18	65	50	63	11	27	12	0.3	0.6	3.2	ZARF40100-TN	1.35	ZARF40100-L-TN	1.45	27.5	53	59	163	4400	1600
40	115	75	47.5	93	65.5	22.5	78	60	78	16	34	12	0.3	0.6	6	ZARF40115-TN	2.70	ZARF40115-L-TN	3.00	38	74	117	315	3700	1200
45	105	60	40	75	55	22.5	70	56	68	11.5	26.5	12	0.3	0.6	6	ZARF45105-TN	1.70	ZARF45105-L-TN	1.85	38	74	61	177	4000	1500
45	130	82	51	103	72	22.5	90	70	88	17.5	38.5	14	0.3	0.6	6	ZARF45130-TN	3.90	ZARF45130-L-TN	4.30	40	82	154	405	3300	1150
50	115	60	40	78	58	22.5	78	60	78	11.5	29.5	12	0.3	0.6	6	ZARF50115-TN	2.10	ZARF50115-L-TN	2.45	40	82	90	300	3600	1200
50	140	82	51	103	72	22.5	95	75	93	17.5	38.5	14	0.3	0.6	6	ZARF50140-TN	4.20	ZARF50140-L-TN	4.65	42	90	172	480	3100	1100
55	145	82	51	103	72	22.5	100	80	98	17.5	38.5	14	0.3	0.6	6	ZARF55145-TN	4.50	ZARF55145-L-TN	5.00	44	98	177	500	2900	1000
60	150	82	51	103	72	22.5	105	90	105	17.5	38.5	16	0.3	0.6	6	ZARF60150-TN	4.70	ZARF60150-L-TN	5.35	44.5	92	178	550	2700	950
65	155	82	51	103	72	22.5	110	90	108	17.5	38.5	16	0.3	0.6	6	ZARF65155-TN	5.12	ZARF65155-L-TN	5.72	54.2	104	172	500	2600	900
70	160	82	51	103	72	22.5	115	100	115	17.5	38.5	16	0.3	0.6	6	ZARF70160-TN	5.20	ZARF70160-L-TN	6.00	56	117	201	630	2400	800
75	185	100	62	125	87	27	135	115	135	21	46	16	0.3	1	6	ZARF75185-TN	9.40	ZARF75185-L-TN	1.06	75	135	285	880	2100	700
90	210	110	69.5	135	97.5	32	160	130	158	22.5	47.5	16	0.3	1	8	ZARF90210-TN	3.70	ZARF90210-L-TN	1.51	100	215	322	1025	1800	700
