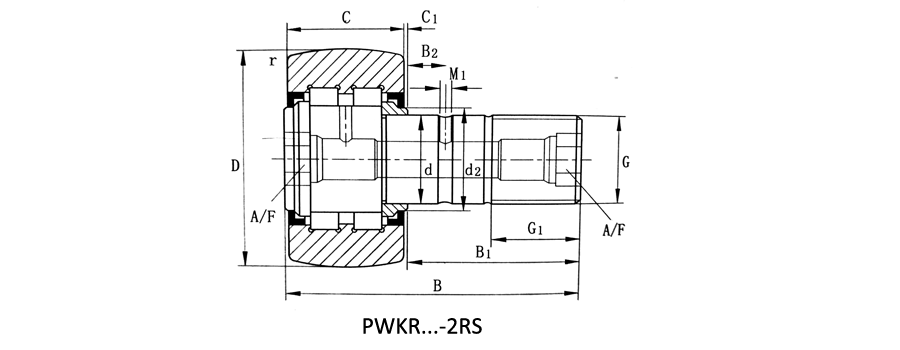

| Cam Followers - PWKR | NATR/NATV | KR/KRV | NUTR | NUKR | PWTR |
| Dimension（mm） | Designation | Mass (g) |
Designation | Mass (g) |
Load Rating（kN） | Limiting Speed (rmp) |
Eccentric Collar | Torque with Nut (mm) |
|||||||||||||||||
| D | d | C | r | B | B1 | B2 | G | G 1 | M1 | C1 | d2 | A/F | Cr D | Cor S | Fr D | For S | d1 | B3 | e | ||||||
| 35 | 16 | 18 | 0.6 | 52 | 32.5 | 7.8 | M16×1.5 | 17 | 3 | 0.8 | 20 | PWKR35-2RS | 164 | -- | -- | 11.6 | 11.3 | 9.4 | 11.3 | 6000 | 20 | 12 | 1 | 58 | |
| 35 | 16 | 18 | 0.6 | 52 | 29.5 | M16×1.5 | 17 | 3.8 | 27 | 8 | -- | - | PWKRE35-2RS | 177 | 11.6 | 11.3 | 9.4 | 11.3 | 6000 | 20 | 12 | 58 | |||
| 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18×1.5 | 19 | 3 | 0.8 | 22 | 8 | PWKR40-2RS | 242 | -- | -- | 13.2 | 13.8 | 13.8 | 13.8 | 5000 | 22 | 14 | 1 | 87 |
| 40 | 18 | 20 | 1 | 58 | 33.5 | M18×1.5 | 19 | 3.8 | 30 | 8 | -- | - | PWKRE40-2RS | 258 | 13.2 | 13.8 | 13.8 | 13.8 | 5000 | 22 | 14 | 87 | |||
| 47 | 20 | 24 | 1 | 66 | 40.5 | 9 | M20×1.5 | 21 | 4 | 0.8 | 27 | 10 | PWKR47-2RS | 380 | PWKRE47-2RS | 400 | 23.2 | 25.5 | 18.3 | 25.5 | 3800 | 24 | 18 | 1 | 120 |
| 52 | 20 | 24 | 1 | 66 | 40.5 | 9 | M20×1.5 | 21 | 4 | 0.8 | 31 | 10 | PWKR52-2RS | 450 | PWKRE52-2RS | 470 | 24.2 | 28 | 19.3 | 28 | 3800 | 24 | 18 | 1 | 120 |
| 62 | 24 | 28 | 1 | 80 | 49.5 | 11 | M24×1.5 | 25 | 4 | 1.3 | 38 | 14 | PWKR62-2RS | 795 | PWKRE62-2RS | 824 | 35 | 39.5 | 25.5 | 39.5 | 2200 | 28 | 22 | 1 | 220 |
| 72 | 24 | 28 | 1.1 | 80 | 49.5 | 11 | M24×1.5 | 25 | 4 | 1.3 | 44 | 14 | PWKR72-2RS | 1020 | PWKRE72-2RS | 1050 | 38.5 | 46.5 | 46.5 | 46.5 | 2200 | 28 | 22 | 1 | 220 |
| 80 | 30 | 35 | 1.1 | 100 | 63 | 15 | M30×1.5 | 32 | 4 | 1 | 47 | 14 | PWKR80-2RS | 1600 | PWKRE80-2RS | 1670 | 56 | 70 | 53 | 70 | 1800 | 35 | 29 | 1.5 | 450 |
| 90 | 30 | 35 | 1.1 | 100 | 63 | 15 | M30×1.5 | 32 | 4 | 1 | 47 | 14 | PWKR90-2RS | 1960 | PWKRE90-2RS | 2020 | 63 | 82 | 82 | 82 | 1800 | 35 | 29 | 1.5 | 450 |
