| 凸缘滚轮轴承-NUKR系列 | NATR/NATV系列 | KR/KRV系列 | NUTR系列 | PWKR系列 | PWTR系列 |
| 尺寸（mm） | 型号 | 重量 (g) |
型号 | 重量 (g) |
载荷（kN） | 极限转速 (rpm) |
偏心套 | 螺母拧紧 力矩(nm) |
|||||||||||||||||

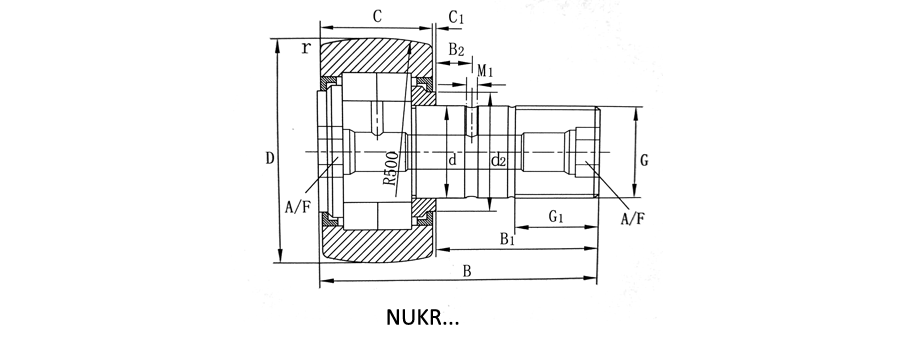

| D | d | C | r | B | B1 | B2 | G | G 1 | M1 | C1 | d2 | A/F | Cr D | Cor S | Fr D | For S | d1 | B3 | e | ||||||
| 35 | 16 | 18 | 0.6 | 52 | 32.5 | 8 | M16×1.5 | 17 | 3 | 0.8 | 20 | 8 | NUKR35 | 164 | - | - | 15 | 16.8 | 8.6 | 16.8 | 6500 | 20 | 12 | 1 | 58 |
| 35 | 16 | 18 | 0.6 | 52 | 32.5 | 8 | M16×1.5 | 17 | 3 | 3.8 | 27 | 8 | - | - | NUKRE35 | 177 | 15 | 16.8 | 8.6 | 16.8 | 6500 | 20 | 12 | 1 | 58 |
| 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18×1.5 | 19 | 3 | 0.8 | 22 | 8 | NUKR40 | 242 | - | - | 18.4 | 22.6 | 13.1 | 22.6 | 5500 | 22 | 14 | 1 | 87 |
| 40 | 18 | 20 | 1 | 58 | 36.5 | 8 | M18×1.5 | 19 | 3 | 3.8 | 30 | 8 | - | - | NUKRE40 | 258 | 18.4 | 22.6 | 13.1 | 22.6 | 5500 | 22 | 14 | 1 | 87 |
| 47 | 20 | 24 | 1 | 66 | 40.5 | 9 | M20×1.5 | 21 | 4 | 0.8 | 27 | 10 | NUKR47 | 380 | NUKRE47 | 400 | 28 | 35 | 16.4 | 33 | 4200 | 24 | 18 | 1 | 120 |
| 52 | 20 | 24 | 1 | 66 | 40.5 | 9 | M20×1.5 | 21 | 4 | 0.8 | 31 | 10 | NUKR52 | 450 | NUKRE52 | 470 | 29 | 37.5 | 17.3 | 34.5 | 3400 | 24 | 18 | 1 | 120 |
| 62 | 24 | 28 | 1 | 80 | 49.5 | 11 | M24×1.5 | 25 | 4 | 1.3 | 38 | 14 | NUKR62 | 795 | NUKRE62 | 824 | 40 | 50 | 23.5 | 46.5 | 2600 | 28 | 22 | 1 | 220 |
| 72 | 24 | 28 | 1.1 | 80 | 49.5 | 11 | M24×1.5 | 25 | 4 | 1.3 | 44 | 14 | NUKR72 | 1020 | NUKRE72 | 1050 | 44.5 | 60 | 32 | 60 | 2100 | 28 | 22 | 1 | 220 |
| 80 | 30 | 35 | 1.1 | 100 | 63 | 15 | M30×1.5 | 32 | 4 | 1 | 47 | 14 | NUKR80 | 1600 | NUKRE80 | 1670 | 69 | 98 | 47.5 | 96 | 1800 | 35 | 29 | 1.5 | 450 |
| 85 | 30 | 35 | 1.1 | 100 | 63 | 15 | M30×1.5 | 32 | 4 | 1 | 47 | 14 | NUKR85 | 1790 | NUKRE85 | 1860 | -- | -- | -- | -- | 1800 | 35 | 29 | 1.5 | 450 |
| 90 | 30 | 35 | 1.1 | 100 | 63 | 15 | M30×1.5 | 32 | 4 | 1 | 47 | 14 | NUKR90 | 1960 | NUKRE90 | 2020 | 79 | 117 | 77 | 117 | 1800 | 35 | 29 | 1.5 | 450 |
