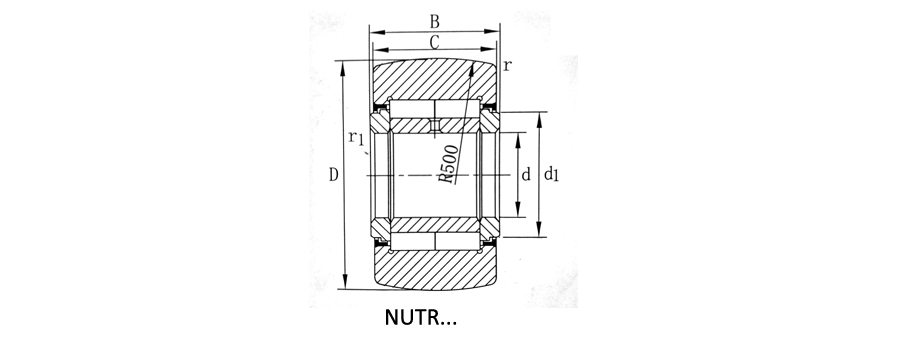

| 凸缘滚轮轴承-NUTR系列 | NATR/NATV系列 | KR/KRV系列 | NUKR系列 | PWKR系列 | PWTR系列 |
| 尺寸(mm) | 型号 | 重量 (g) |
载荷(kN) | 极限转速 (rpm) |
|||||||
| d | D | B | C | d 1 | r | r1 | Cr | Cor | |||
| 15 | 35 | 19 | 18 | 20 | 0.6 | 0.3 | NUTR15 | 99 | 16 | 16.8 | 6500 |
| 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 | NUTR1542 | 158 | 18.1 | 21.9 | 6500 |
| 17 | 40 | 21 | 20 | 22 | 1 | 0.5 | NUTR17 | 147 | 18.4 | 22.6 | 5500 |
| 17 | 47 | 21 | 20 | 22 | 1 | 0.5 | NUTR1747 | 220 | 21.3 | 28 | 5500 |
| 20 | 47 | 25 | 24 | 27 | 1 | 0.5 | NUTR20 | 245 | 28 | 35 | 4200 |
| 20 | 52 | 25 | 24 | 27 | 1 | 0.5 | NUTR2052 | 321 | 31.5 | 41 | 4200 |
| 25 | 52 | 25 | 24 | 31 | 1 | 0.5 | NUTR25 | 281 | 29 | 37.5 | 3400 |
| 25 | 62 | 25 | 24 | 31 | 1 | 0.5 | NUTR2562 | 450 | 35.5 | 50 | 3400 |
| 30 | 62 | 29 | 28 | 38 | 1 | 0.5 | NUTR30 | 465 | 40 | 50 | 2600 |
| 30 | 72 | 29 | 28 | 38 | 1 | 0.5 | NUTR3072 | 697 | 47.5 | 64 | 2600 |
| 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | NUTR35 | 630 | 44.5 | 60 | 2100 |
| 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 | NUTR3580 | 838 | 51 | 72 | 2100 |
| 40 | 80 | 32 | 30 | 51 | 1.1 | 0.6 | NUTR40 | 816 | 55 | 75 | 1600 |
| 40 | 90 | 32 | 30 | 51 | 1.1 | 0.6 | NUTR4090 | 1129 | 66 | 95 | 1600 |
| 45 | 85 | 32 | 30 | 55 | 1.1 | 0.6 | NUTR45 | 883 | 56 | 78 | 1400 |
| 45 | 100 | 32 | 30 | 55 | 1.1 | 0.6 | NUTR45100 | 1396 | 71 | 107 | 1400 |
| 50 | 90 | 32 | 30 | 60 | 1.1 | 0.6 | NUTR50 | 950 | 57 | 81 | 1300 |
| 50 | 110 | 32 | 30 | 60 | 1.1 | 0.6 | NUTR50110 | 1690 | 76 | 120 | 1300 |
