| 凸缘滚轮轴承-PWTR系列 | NATR/NATV系列 | KR/KRV系列 | NUTR系列 | NUKR系列 | PWKR系列 |
| 尺寸(mm) | 型号 | 重量 (g) |
载荷(kN) | 极限转速 (rpm) |
|||||||

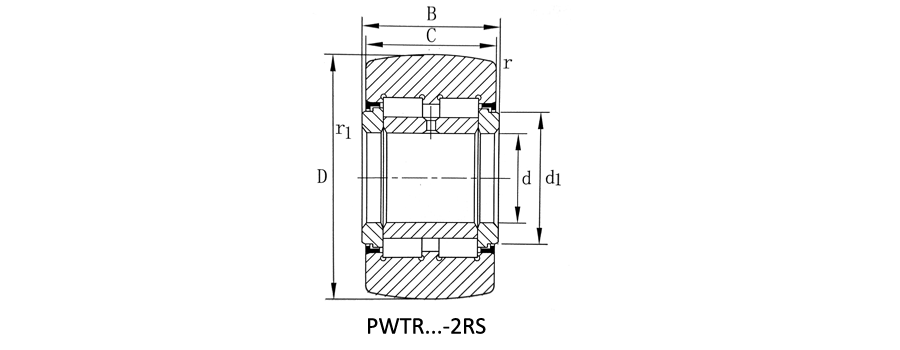

| d | D | B | C | d 1 | r | r1 | Cr | Cor | |||
| 15 | 35 | 19 | 18 | 20 | 0.6 | 0.3 | PWTR 15-2RS | 99 | 11.6 | 11.3 | 6000 |
| 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 | PWTR 1542-2RS | 158 | 13.5 | 14.1 | 6000 |
| 17 | 40 | 21 | 21 | 22 | 1 | 0.5 | PWTR 17-2RS | 147 | 13.2 | 13.8 | 5000 |
| 17 | 47 | 21 | 21 | 22 | 1 | 0.5 | PWTR 1747-2RS | 220 | 14.8 | 16.4 | 5000 |
| 20 | 47 | 25 | 24 | 27 | 1 | 0.5 | PWTR 20-2RS | 245 | 23.2 | 25.5 | 3800 |
| 20 | 52 | 25 | 24 | 27 | 1 | 0.5 | PWTR 2052-2RS | 321 | 25.5 | 29.5 | 3800 |
| 25 | 52 | 25 | 24 | 31 | 1 | 0.5 | PWTR 25-2RS | 281 | 24.2 | 28 | 3800 |
| 25 | 62 | 25 | 24 | 31 | 1 | 0.5 | PWTR 2562-2RS | 450 | 29 | 36 | 3800 |
| 30 | 62 | 29 | 28 | 38 | 1 | 0.5 | PWTR 30-2RS | 465 | 35 | 39.5 | 2200 |
| 30 | 72 | 29 | 28 | 38 | 1 | 0.5 | PWTR 3072-2RS | 697 | 41 | 49 | 2200 |
| 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | PWTR 35-2RS | 630 | 38.5 | 46.5 | 1800 |
| 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 | PWTR 3580-2RS | 838 | 43.5 | 55 | 1800 |
| 40 | 80 | 32 | 30 | 51 | 1.1 | 0.6 | PWTR 40-2RS | 816 | 44.5 | 53 | 1500 |
| 40 | 90 | 32 | 30 | 51 | 1.1 | 0.6 | PWTR 4090-2RS | 1129 | 52 | 66 | 1500 |
| 45 | 85 | 32 | 30 | 55 | 1.1 | 0.6 | PWTR 45-2RS | 883 | 45 | 55 | 1300 |
| 45 | 100 | 32 | 30 | 55 | 1.1 | 0.6 | PWTR 45100-2RS | 1396 | 56 | 74 | 1300 |
| 50 | 90 | 32 | 30 | 60 | 1.1 | 0.6 | PWTR 50-2RS | 950 | 45.5 | 57 | 1100 |
| 50 | 110 | 32 | 30 | 60 | 1.1 | 0.6 | PWTR 50110-2RS | 1690 | 59 | 82 | 1100 |
